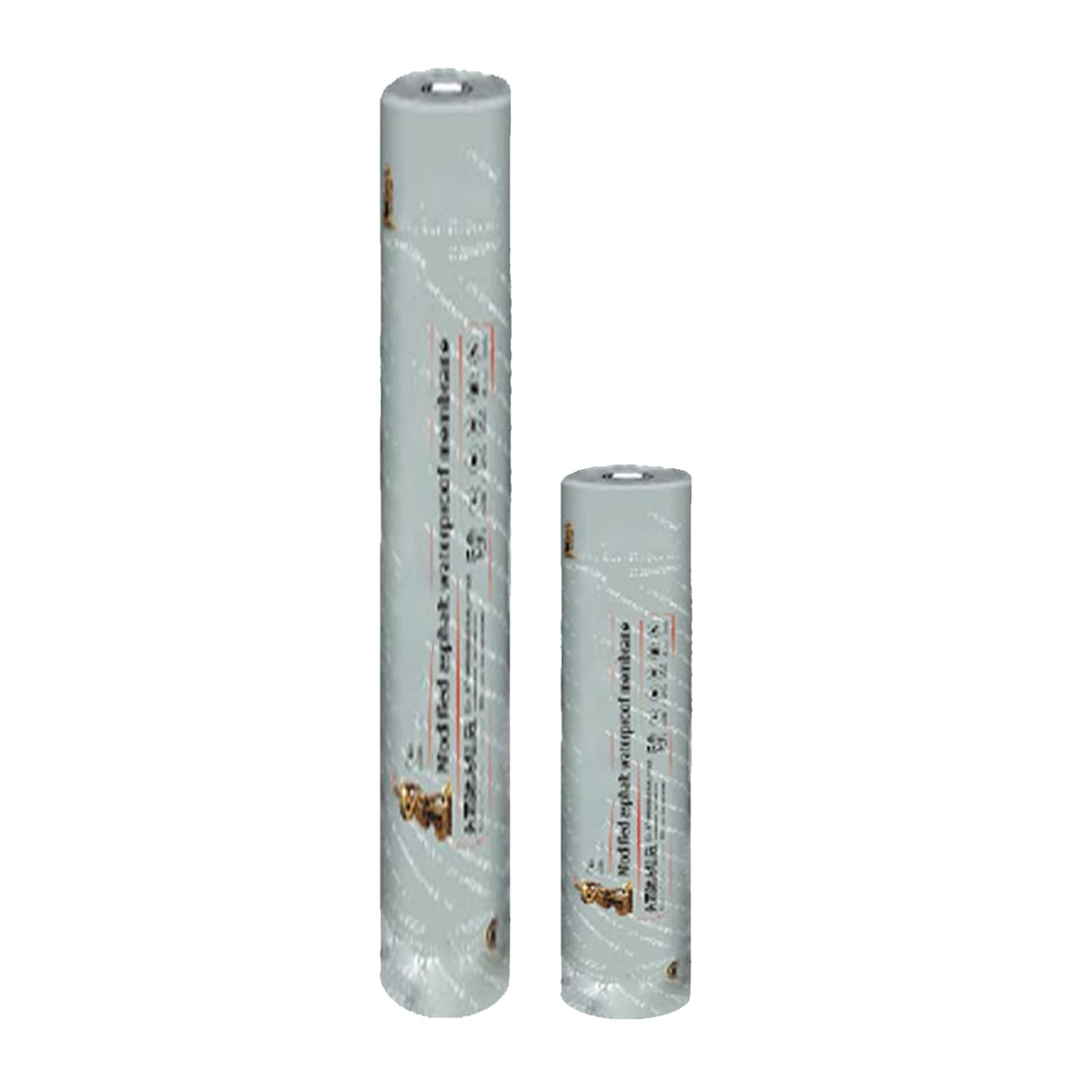

TPA Metal-Faced Waterproof Membrane

SKU: N/A
In Stock

Add to Wishlist
Add to Wishlist
  • Width available in 1m and 2m.
  •  Non-bituminous polymer adhesive — eco-friendly, odor-free, and highly durable.
  • Molecular bonding technology — forms chemical bonds with concrete for permanent adhesion.
  • TPO base layer — provides high strength, flexibility, and chemical resistance.
  • Root-resistant — effectively prevents root penetration and ensures long-term protection.
  • Reliable under all conditions — strong adhesion on damp surfaces, performs at -15°C.

This product is currently out of stock and unavailable.

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Any Question? Ask Specialist

+66(0)636351409

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

This high-performance waterproof membrane is constructed with a TPO (Thermoplastic Polyolefin) base layer and a non-bituminous polymer adhesive layer, providing excellent tensile strength, elongation, and long-term durability.

Using proprietary molecular-level self-adhesive technology, the adhesive incorporates hydrophilic functional groups such as hydroxyl (-OH) and carboxyl (-COOH). These groups chemically react with cement hydration products, creating permanent molecular bonds with the substrate for superior waterproof sealing.

Additionally, a chemical root-resistant additive is incorporated into the adhesive layer to effectively prevent root penetration and ensure stable waterproof performance in green or landscaped applications.

Designed for wet substrates and low-temperature conditions (down to -15°C), this pre-applied membrane delivers strong adhesion, durable waterproofing, and eco-friendly performance, free from asphalt-based materials.

Specifications
• Base Material: TPO (Thermoplastic Polyolefin)
• Adhesive Layer: Non-bituminous polymer adhesive
• Thickness: 1.5 mm, 2.0 mm
• Width: 1 m, 2m
• Length per Roll: 20 m (standard)
• Type: Wet-laid, root-resistant



Physical & Mechanical Properties

Tensile Properties
• Maximum Tensile Force: ≥ 12Mpa
• Elongation at Maximum Tensile Force: ≥ 500%

Trapezoidal Tear Strength
• ≥ 250 N

Low Temperature Flexibility
• No cracks at -40°C

Watertightness
• No leakage under 0.3 MPa water pressure for 2 hours

Adhesion Holding Time
• ≥ 20 minutes

Peel Strength (Membrane to Membrane)
• ≥ 60 N/mm



Applications
• Basements and foundations
• Tunnels and subways
Green roofs and landscaped decks
• Retaining walls
• Bridges and other civil waterproofing projects

Additional information

Thickness

1.5mm

Width

1m, 2m
